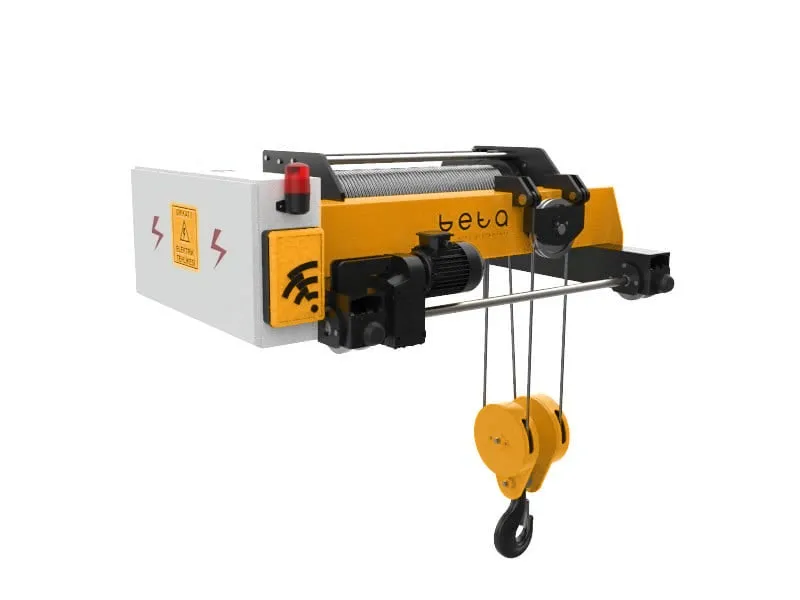

What is a crane trolley hoist?
An electric crane trolley hoist is the lifting trolley that runs on the rails on top of the bridge of double girder overhead cranes and gantry cranes. It moves the load up and down and left and right along the bridge. Beta Crane manufactures and sells crane trolley hoists from 1 to 32 tons.
Why a Beta crane trolley hoist?
- Local, easy-to-source components: easy warranty, spare parts and technical service.
- High-grade components: DIN standard hook, drum and rope guide.
- 2-year warranty and local manufacturing.
- Fits existing cranes: the trolley of an old bridge can be replaced with a new one.
Technical specifications
All models are duty class 2m / M5.
| Capacity | Hoist motor | Trolley travel motor | Rope diameter |
|---|---|---|---|
| 1 t | 1.1 kW | 0.25 kW | 8 mm |
| 2 t | 2.2 kW | 0.25 kW | 10 mm |
| 3 t | 3 kW | 0.37 kW | 10 mm |
| 5 t | 4 kW | 0.55 kW | 12 mm |
| 7.5 t | 5.5 kW | 0.75 kW | 12 mm |
| 10 t | 7.5 kW | 0.75 kW | 14 mm |
| 15 t | 11 kW | 1.5 kW | 16 mm |
| 20 t | 15 kW | 2.2 kW | 18 mm |
| 30 t | 22 kW | 3 kW | 16 mm |
Crane trolley hoist components
- Rope: fibre-core steel wire rope.
- Hook and block: all hooks are DIN standard.
- Gearbox and motor: usually Yılmaz brand, helical gears with an integrated electromagnetic brake.
- Rope drum: DIN standard, CNC machined, grooved and guided.
- Rope guide: GGG70 cast iron.
- Panel and controls: usually Schneider push-button groups.
Options
- Inverter speed control
- Radio remote control
- Lifting heights of 6, 9, 15 and 20 m
Areas of use

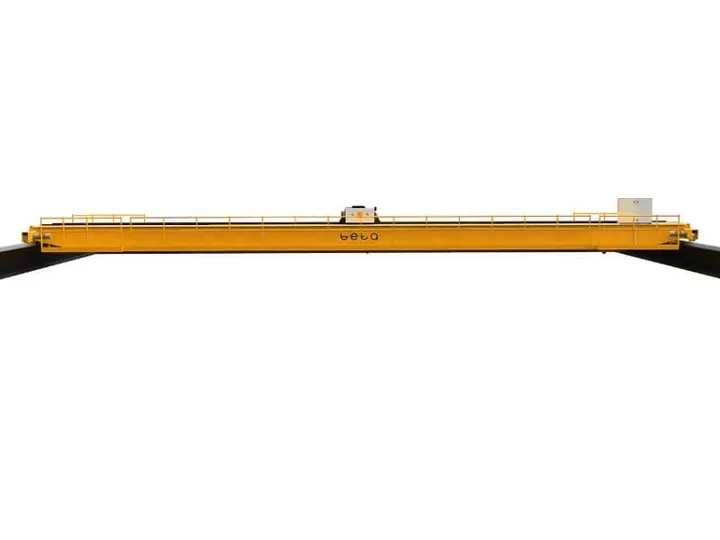

- Double girder overhead cranes

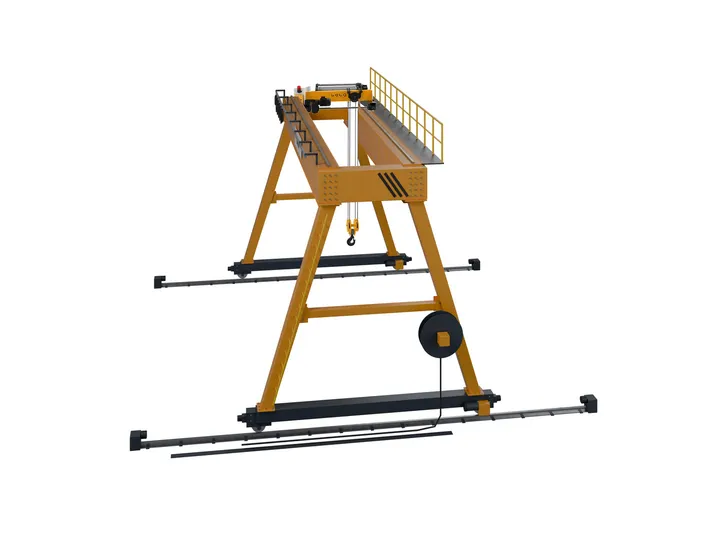

- Gantry cranes
- Trolley replacement and capacity upgrades on older cranes
When choosing
- Capacity: add the weight of the hook block and slings to the heaviest load.
- Trolley rail gauge: the distance between the centres of the rails on the two girders.
- Lifting height: the highest point the hook must reach.
- Speed and intensity of use: dual speed or inverter for precise positioning.
Frequently asked questions
Which cranes use a crane trolley hoist?
A crane trolley hoist is used as the lifting trolley running on the rails on top of the bridge of double girder overhead cranes and gantry cranes.
Can I replace the trolley of my existing crane?
Yes. With the trolley rail gauge, capacity and lifting height, a trolley hoist to suit the existing bridge is manufactured.
What is the warranty on the crane trolley hoist?
Our crane trolley hoists are locally manufactured and come with a 2-year warranty.
For more information about our products, contact us or e-mail destek@betavinc.com.
